NEW HX40W Turbo Truck Transit Bus Cummins Pegasus ISC 4033650 4046058

BRAND NEW TURBOTURBOS TURBOCHARGER

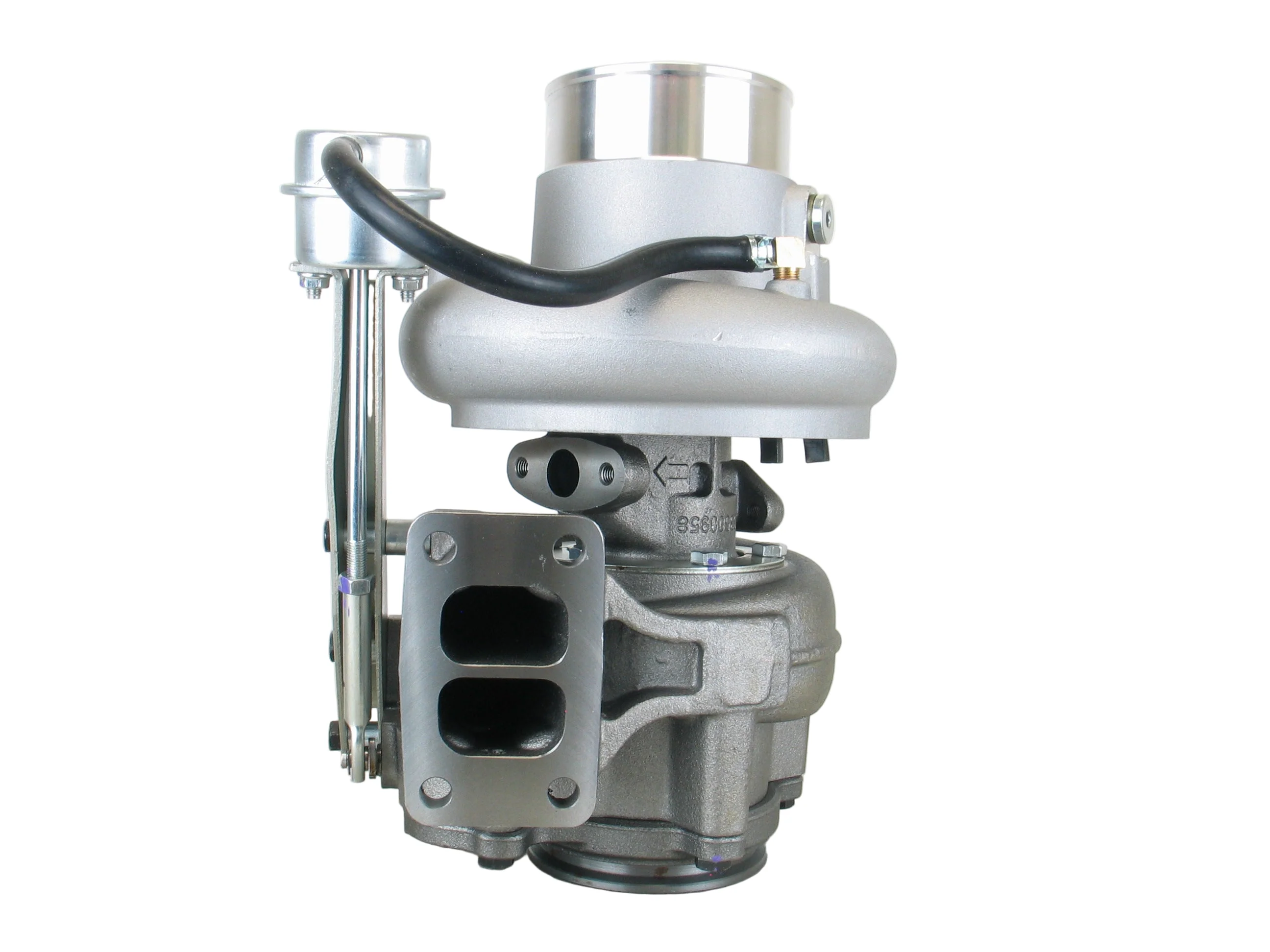

This is a BRAND NEW TURBOTURBOS TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: This turbocharger does not come with pressure sensor.

Fits the following:

Part Number: TP05-0263-36
Interchangeable Number: 4046058, 4033650, 4033650H, 4039905, 170-032-0042, 170-032-0995, 170-032-2873, 1700320042, 1700320995, 1700322873, 2080130R, 4033650, 4033650H, 4033650HX, 4039905, 4039906, 4039907, 4039908, 4039909, 4039910, 4046058, 4089927, 408992700, 408992700HX, 4089927HX, 4089927NX, 4089927RX, OTR2080130R, 4033657, 4036430, 4038708, 4037721, 4036657, 4036429, 4089825, 4033649, 2842810, 4033649H, 4033649HX
OEM Number: 3802769, 4039906, 4039907, 4039908, 4039909, 4039910, 4089927, 408992700HX, 4089927HX, 4089927NX, 4089927RX
Turbo Model: HX40W
Manufacturer: Holset

Year: 2004-
Engine: Pegasus ISC
Engine Manufacturer: Cummins
Fuel: Diesel

Angle α (Compressor Housing): 275/176/195/212°
Angle β (Turbine Housing): 157/133/60°
Actuator: 4031329
Bearing Housing: 4038197 (3537112, 3593878)(Oil Cooled)
CHRA: 4031321 (4031321H, 4032234, 4032695, 4043363)
Compressor Wheel: 4035879 (3599016, 4035879, 4043377)(Ind. 59.99 mm, Exd. 86.05 mm, Trim 5.86, 7+7 Blades, Super Back)(1154351400)
Gasket (Oil Inlet): 409039-0000 (409039-0001, 210022-0000, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Gasket (Oil Outlet): 210060 (2475013, 409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)(Paper)
Gasket Kit: 3545575 (1900100057)
Heat Shield: 3519302 (3519304)(1152301340)
Repair Kit: 4027448 (3575169)(1153035750, 1153035751)(Minor)
Seal Plate: 3596448 (3530923)
Turbine Wheel: 3596226 (4050572)(Ind. 64 mm, Exd. 76 mm, Trim 10.16, 10 Blades)

Application:

2004- Truck, Transit Bus with Cummins Pegasus ISC Engine

2004- Gillig Coach/Transit Bus with Cummins ISC 8.3L Engine

TURBOTURBOS SKU: TP05-0263-36

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
