NEW OEM BorgWarner K04 Upgraded Turbo Audi A4 A6 VW Passat 1.8L Gas 53049880015

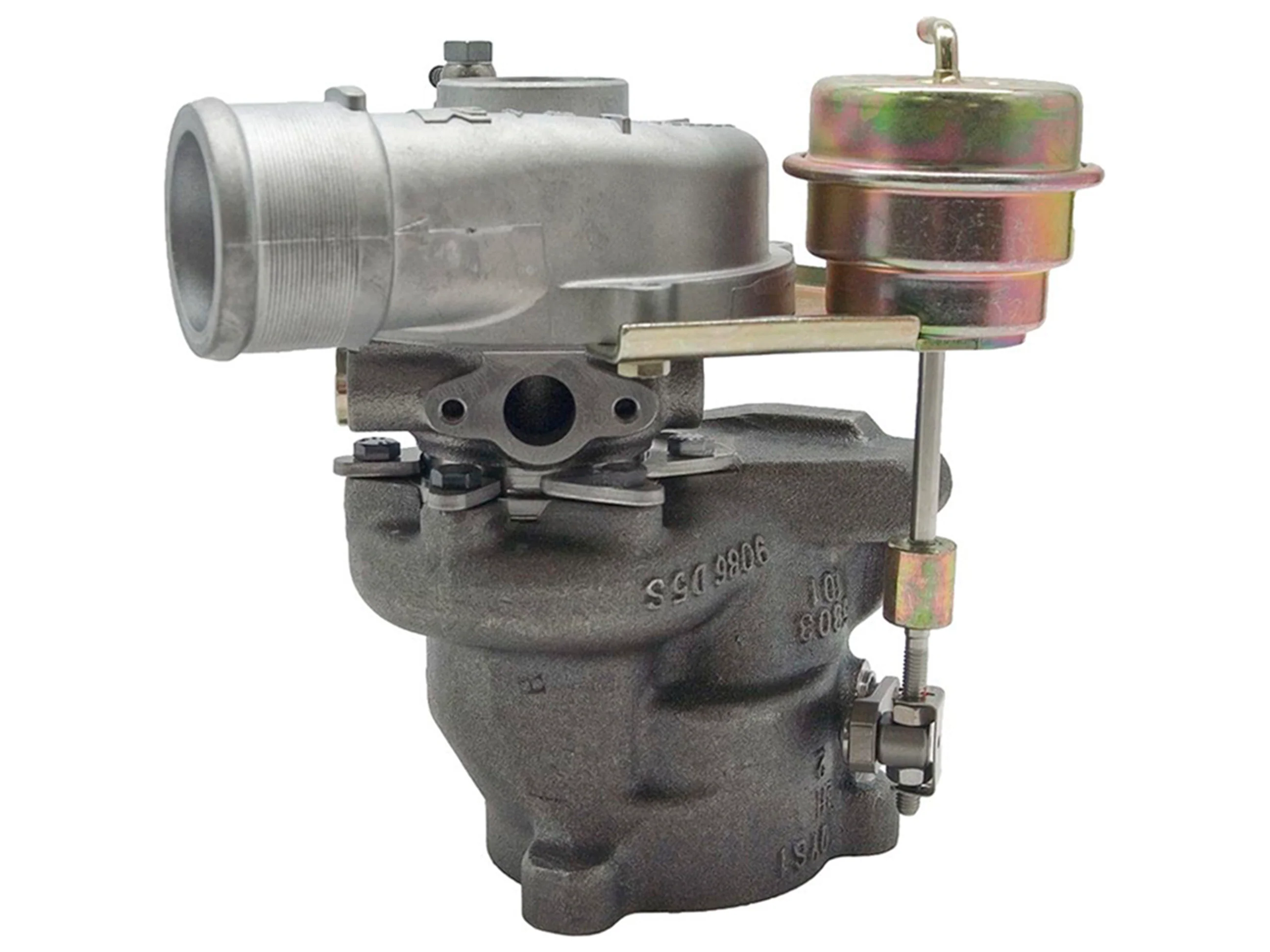

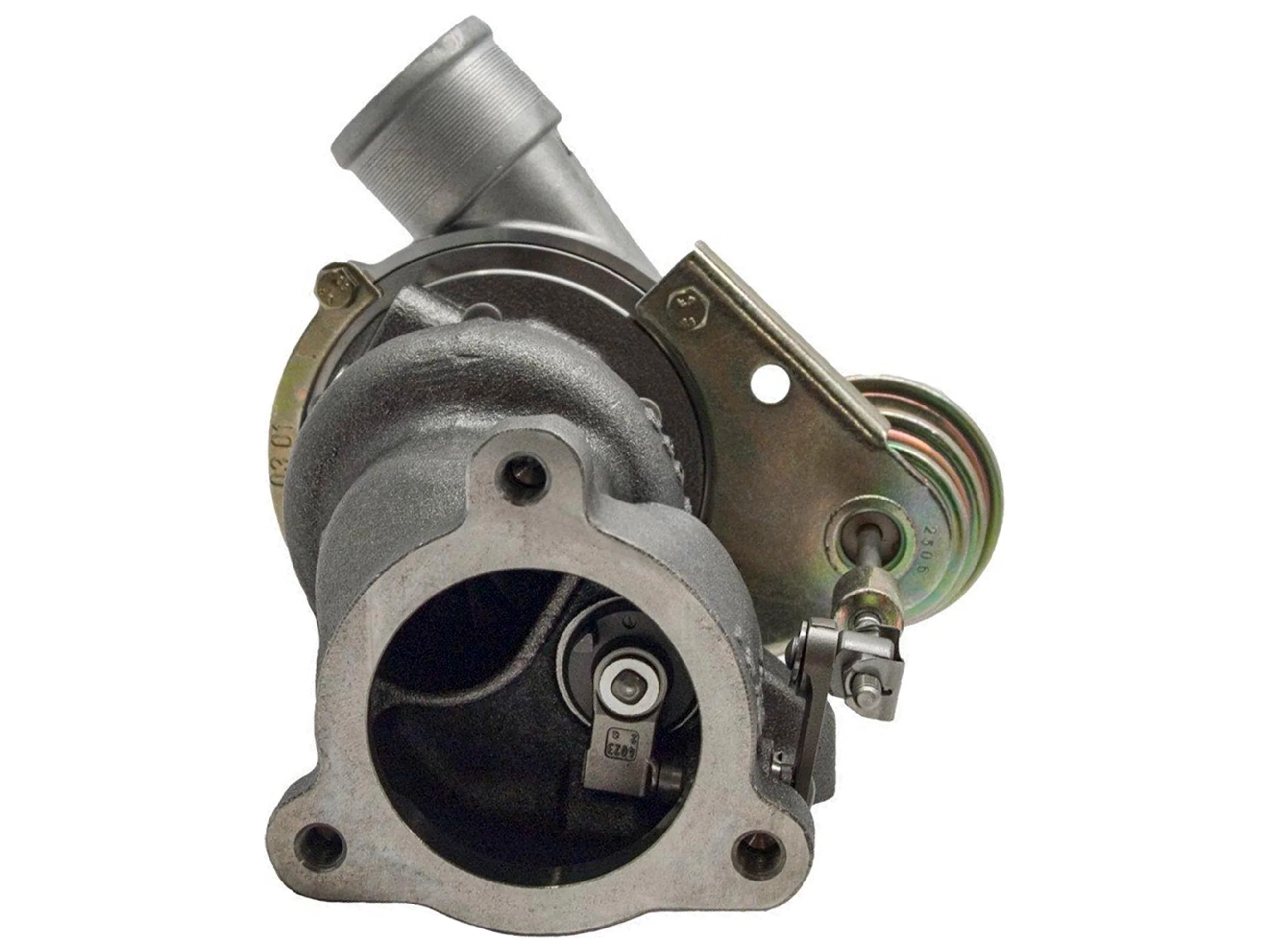

BRAND NEW GENUINE BORGWARNER PERFORMANCE UPGRADE TURBOCHARGER

This is a BRAND NEW GENUINE BORGWARNER PERFORMANCE UPGRADE TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 53049880015
Interchangeable Number: 5304-988-0015, 5304 988 0015, 53039700005, 5303-970-0005, 5303 970 0005, 53039880005, 5303-988-0005, 5303 988 0005, 53039700029, 5303-970-0029, 5303 970 0029, 53039880029, 5303-988-0029, 5303 988 0029, 53049700015, 5304-970-0015, 5304 970 0015, 53049887500, 5304-988-7500, 5304 988 7500
OEM Number: 0581457803J
Turbo Model: K04, K04-2075EAC4.82GCAXK
Manufacturer: BorgWarner - 3K - Schwitzer

Year: 1995-99
Engine: 1.8L-5V langs/along
Displacement: 1.8L, 1800 ccm, 4 Cylinders
Fuel: Gas
Power: 154/165 kW, 210/225 HP

Angle α (Compressor Housing): 160°
Angle β (Turbine Housing): 150°
Actuator: 58251104063/58251104024
Back Plate: 53041515702/53041515700
Bearing Housing (Water Cooled): 53041500006 (53041500009, 53041500015, 53041500017)
CHRA: 53047100503 (1000030115)
Compressor Housing: 53041015007
Compressor Wheel Inducer: 1.48 in (37.6 mm)
Compressor Wheel Outside Diameter: 1.97 in
Compressor Wheel: 53041232010/53041232004/53041232009
Fitting Kit: 53037121000
Gasket (Oil Outlet): 210310
Gasket (Turbine Inlet): 210337 (Metal & Paper Gasket)
Gasket (Turbine Outlet): 210242 (Steel)
Heat Shield: 53031652000
Repair Kit: 53037110000
Turbine Housing A/R: 4
Turbine Housing: 53041009017
Turbine Wheel Exducer: 1.65 in (42 mm)
Turbine Wheel Outside Diameter: 1.81 in (46 mm)
Turbine Wheel: 53041205023/53041205007
Wastegate Settings (Lift Shaft): 2 mm
Wastegate Settings (Pressure): 0 bar

PRODUCT FEATURES:

How about a BorgWarner AirWerks K04 series performance upgrade turbo, developed specifically for Audi and VW 1.8 liter engines? This upgrade option can enhance engine performance as much as 15%. Ultimate output may vary depending on prior engine condition, fuel settings and other supporting performance components. Only qualified companies and tuner shops should attempt to make performance modifications to the engine and the vehicle.

NOTE:

- Power as quoted will only be achieved with modified ECU. Installation may make the vehicle street-illegal.
- Max exhaust gas temperature before turbine: 930°C continuously, 950°C temporarily.

Application:
1995-99 Audi A4, A6 with 1.8L-5V langs/along Engine
1996-99 Volkswagen Passat with 1.8L-5V langs/along Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
