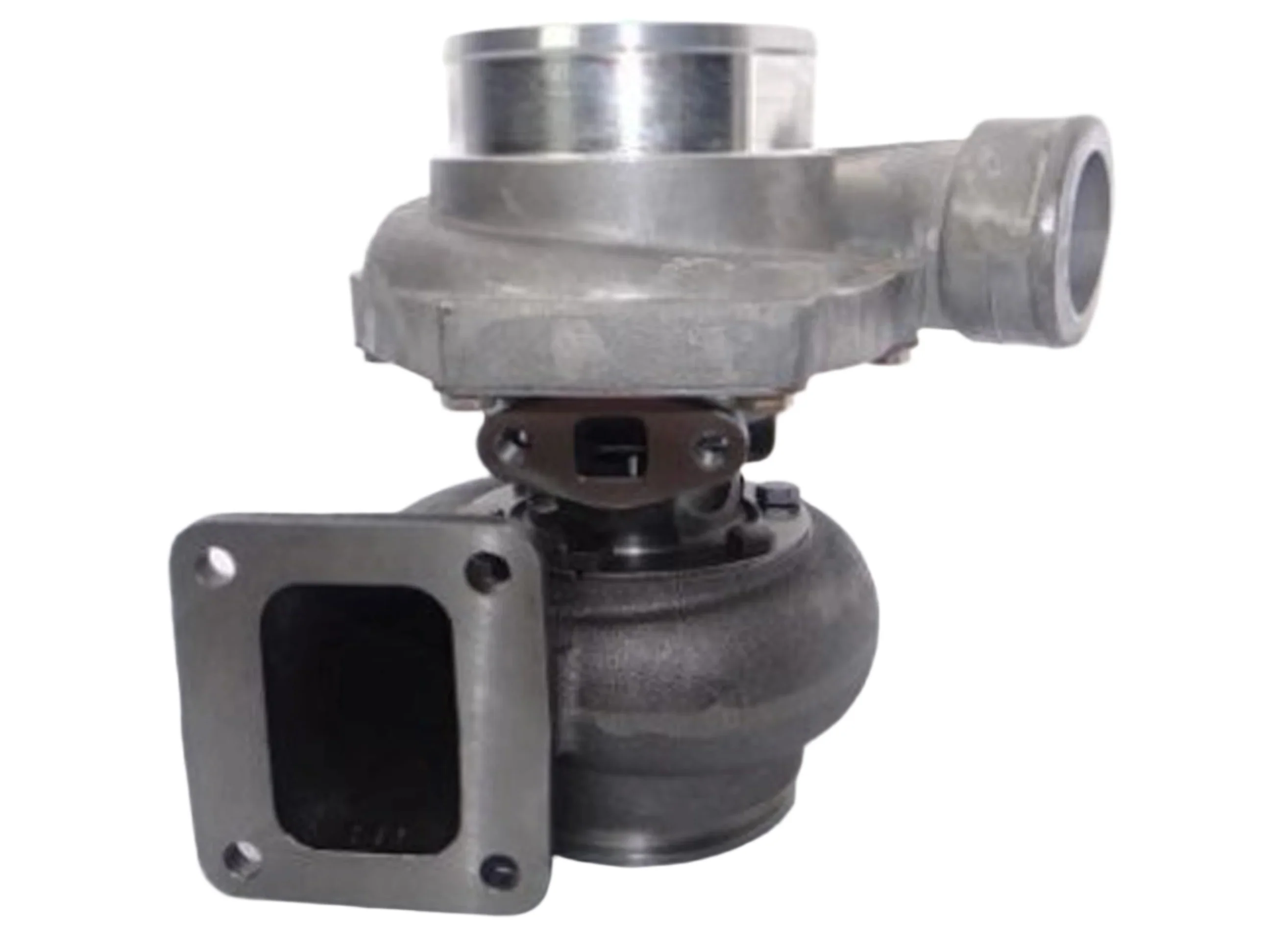

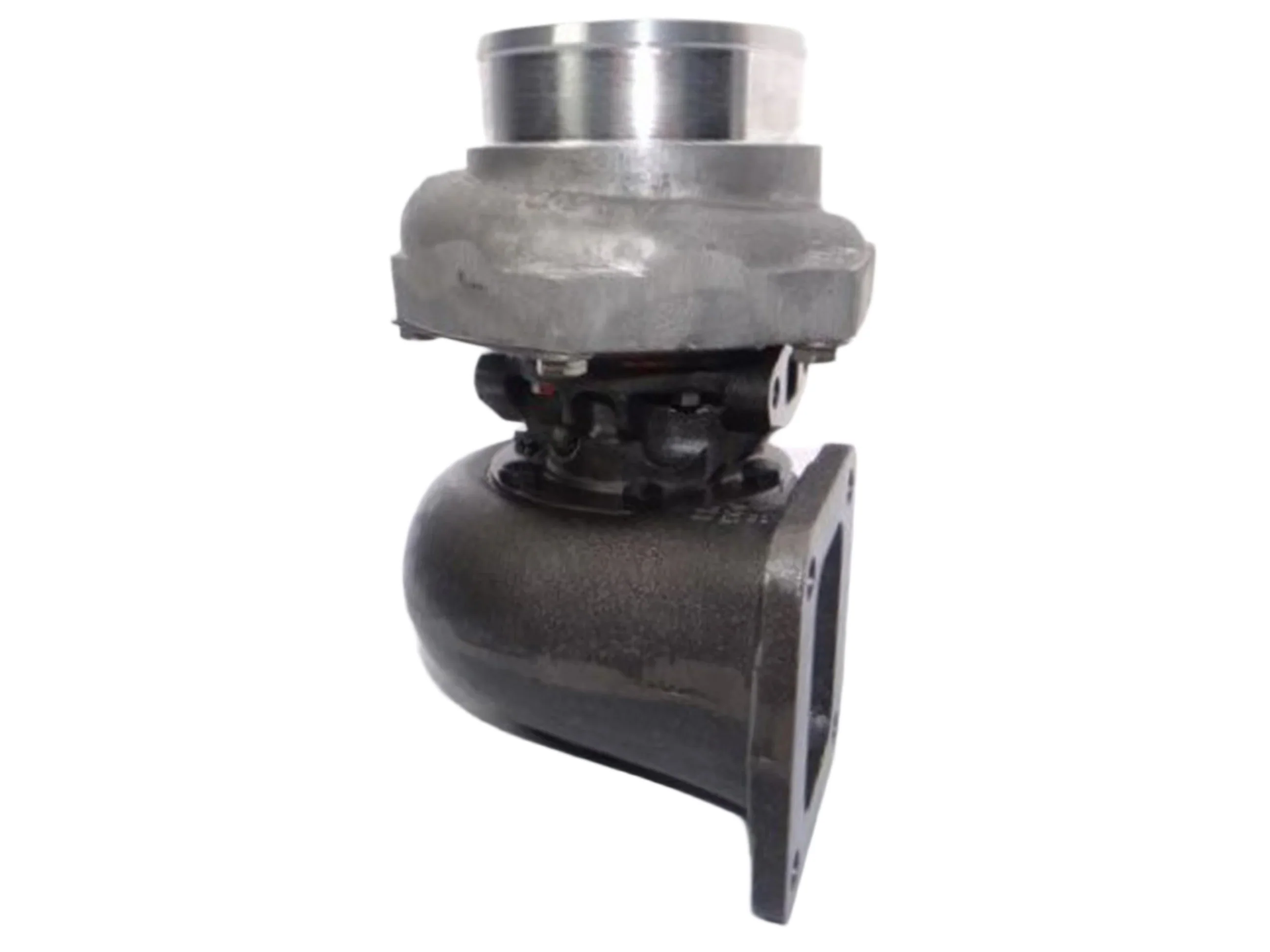

NEW OEM Garrett T04B98 Turbo Marine Detroit Diesel 6V92TA 9.0L 465242-5002
BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 465242-5002
Interchangeable Number: 465242-0002, 465242-5002S
OEM Number: 05106250, 5106250
Turbo Model: T04B98
Manufacturer: Garrett
Year: 1977-
Engine: 6V92TA
Engine Manufacturer: MTU, Detroit Diesel
Displacement: 9.0L 9000 ccm, 6 Cylinders
Fuel: Diesel
Power: 300 HP
Angle α (Compressor Housing): 334°
Angle β (Turbine Housing): 0°
Back Plate: 408045-0034 (311708, 312576, 408045-0035, 408045-0051)
Bearing Housing: 430027-0021 (430027-0051, 430027-0029, 430027-0032, 430027-0025)(186880, 186882, AR63781, 684360C92)(1100030451)(Oil Cooled)
CHRA: 408105-0115 (408105-5115S, 8920899)
Compressor Cover: 409295-0001 (5149630)
Compressor Wheel: 409826-0014 (8920901)(Ind. 55.3 mm, Exd. 70 mm, Trim 62, 6+6 Blades)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 210140
Gasket Kit: 215175
Heat Shield: 409299-0001 (409299-0000)(ME078199, 5149546)(311943, 7N0012, 3524773B)
Repair Kit: 468100-0000 (1100040750)
Stud Kit: 446397-0408
Turbine Housing A/R: 0.96
Turbine Housing: 409302-0032 (5149552)
Turbine Wheel: 446905-0007 (407276-0006, 407276-0019, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0010, 451309-0003, 451309-0004)(5149539)(Ind. 74 mm, Exd. 64.6 mm, Trim P, 11 Blades)
Turbo Technology: Free Floating
Application:
1977- Marine with Detroit Diesel 6V92TA Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 465242-5002
Interchangeable Number: 465242-0002, 465242-5002S
OEM Number: 05106250, 5106250
Turbo Model: T04B98
Manufacturer: Garrett
Year: 1977-
Engine: 6V92TA
Engine Manufacturer: MTU, Detroit Diesel
Displacement: 9.0L 9000 ccm, 6 Cylinders
Fuel: Diesel
Power: 300 HP
Angle α (Compressor Housing): 334°
Angle β (Turbine Housing): 0°
Back Plate: 408045-0034 (311708, 312576, 408045-0035, 408045-0051)
Bearing Housing: 430027-0021 (430027-0051, 430027-0029, 430027-0032, 430027-0025)(186880, 186882, AR63781, 684360C92)(1100030451)(Oil Cooled)
CHRA: 408105-0115 (408105-5115S, 8920899)
Compressor Cover: 409295-0001 (5149630)
Compressor Wheel: 409826-0014 (8920901)(Ind. 55.3 mm, Exd. 70 mm, Trim 62, 6+6 Blades)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 210140
Gasket Kit: 215175
Heat Shield: 409299-0001 (409299-0000)(ME078199, 5149546)(311943, 7N0012, 3524773B)
Repair Kit: 468100-0000 (1100040750)
Stud Kit: 446397-0408
Turbine Housing A/R: 0.96
Turbine Housing: 409302-0032 (5149552)
Turbine Wheel: 446905-0007 (407276-0006, 407276-0019, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0010, 451309-0003, 451309-0004)(5149539)(Ind. 74 mm, Exd. 64.6 mm, Trim P, 11 Blades)
Turbo Technology: Free Floating
Application:
1977- Marine with Detroit Diesel 6V92TA Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
$1,395.00
NEW OEM Garrett T04B98 Turbo Marine Detroit Diesel 6V92TA 9.0L 465242-5002—
$1,395.00
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 465242-5002
Interchangeable Number: 465242-0002, 465242-5002S
OEM Number: 05106250, 5106250
Turbo Model: T04B98
Manufacturer: Garrett
Year: 1977-
Engine: 6V92TA
Engine Manufacturer: MTU, Detroit Diesel
Displacement: 9.0L 9000 ccm, 6 Cylinders
Fuel: Diesel
Power: 300 HP
Angle α (Compressor Housing): 334°
Angle β (Turbine Housing): 0°
Back Plate: 408045-0034 (311708, 312576, 408045-0035, 408045-0051)
Bearing Housing: 430027-0021 (430027-0051, 430027-0029, 430027-0032, 430027-0025)(186880, 186882, AR63781, 684360C92)(1100030451)(Oil Cooled)
CHRA: 408105-0115 (408105-5115S, 8920899)
Compressor Cover: 409295-0001 (5149630)
Compressor Wheel: 409826-0014 (8920901)(Ind. 55.3 mm, Exd. 70 mm, Trim 62, 6+6 Blades)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 210140
Gasket Kit: 215175
Heat Shield: 409299-0001 (409299-0000)(ME078199, 5149546)(311943, 7N0012, 3524773B)
Repair Kit: 468100-0000 (1100040750)
Stud Kit: 446397-0408
Turbine Housing A/R: 0.96
Turbine Housing: 409302-0032 (5149552)
Turbine Wheel: 446905-0007 (407276-0006, 407276-0019, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0010, 451309-0003, 451309-0004)(5149539)(Ind. 74 mm, Exd. 64.6 mm, Trim P, 11 Blades)
Turbo Technology: Free Floating
Application:
1977- Marine with Detroit Diesel 6V92TA Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 465242-5002
Interchangeable Number: 465242-0002, 465242-5002S
OEM Number: 05106250, 5106250
Turbo Model: T04B98
Manufacturer: Garrett
Year: 1977-
Engine: 6V92TA
Engine Manufacturer: MTU, Detroit Diesel
Displacement: 9.0L 9000 ccm, 6 Cylinders
Fuel: Diesel
Power: 300 HP
Angle α (Compressor Housing): 334°
Angle β (Turbine Housing): 0°
Back Plate: 408045-0034 (311708, 312576, 408045-0035, 408045-0051)
Bearing Housing: 430027-0021 (430027-0051, 430027-0029, 430027-0032, 430027-0025)(186880, 186882, AR63781, 684360C92)(1100030451)(Oil Cooled)
CHRA: 408105-0115 (408105-5115S, 8920899)
Compressor Cover: 409295-0001 (5149630)
Compressor Wheel: 409826-0014 (8920901)(Ind. 55.3 mm, Exd. 70 mm, Trim 62, 6+6 Blades)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 210140
Gasket Kit: 215175
Heat Shield: 409299-0001 (409299-0000)(ME078199, 5149546)(311943, 7N0012, 3524773B)
Repair Kit: 468100-0000 (1100040750)
Stud Kit: 446397-0408
Turbine Housing A/R: 0.96
Turbine Housing: 409302-0032 (5149552)
Turbine Wheel: 446905-0007 (407276-0006, 407276-0019, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0010, 451309-0003, 451309-0004)(5149539)(Ind. 74 mm, Exd. 64.6 mm, Trim P, 11 Blades)
Turbo Technology: Free Floating
Application:
1977- Marine with Detroit Diesel 6V92TA Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
