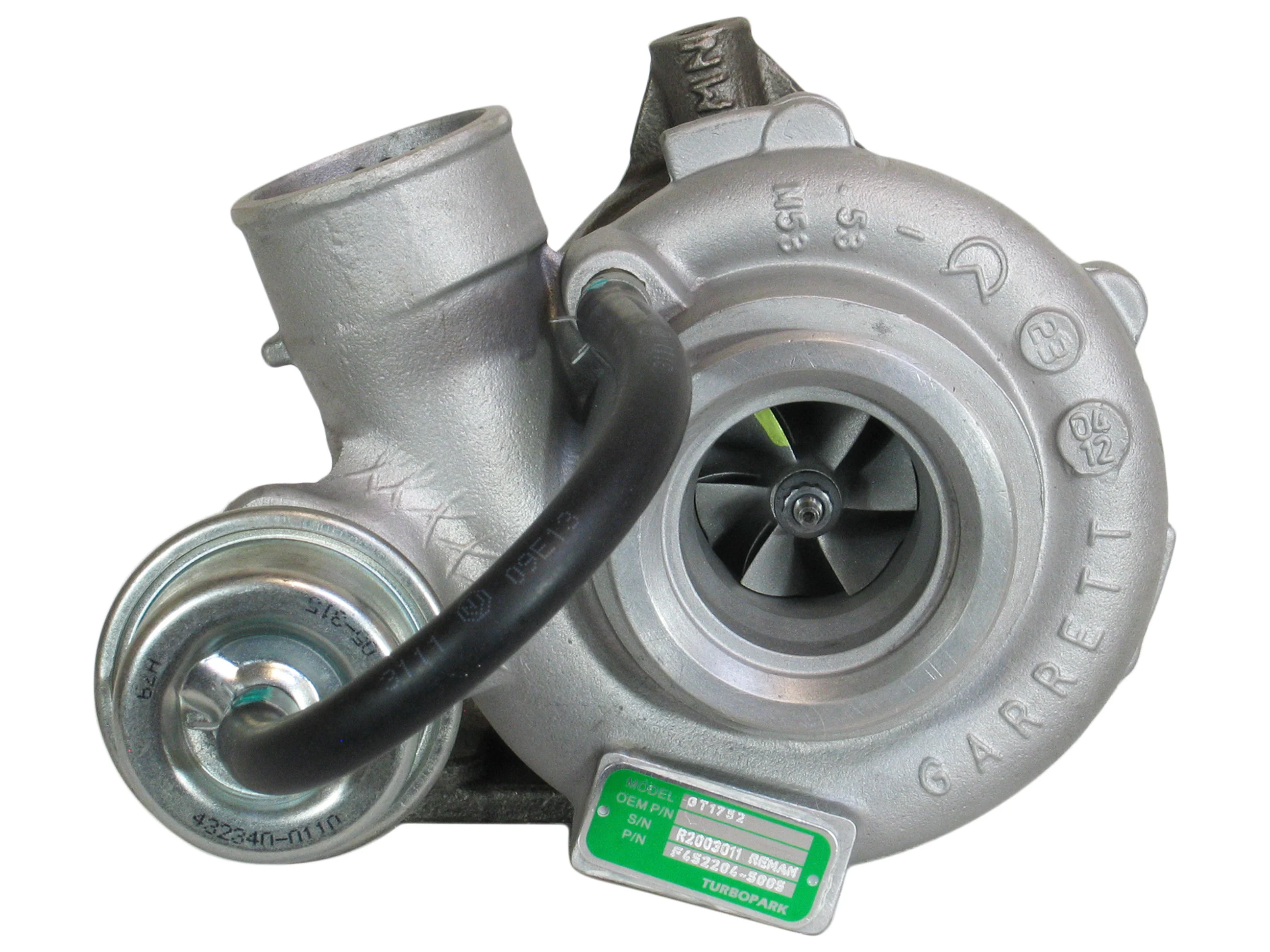

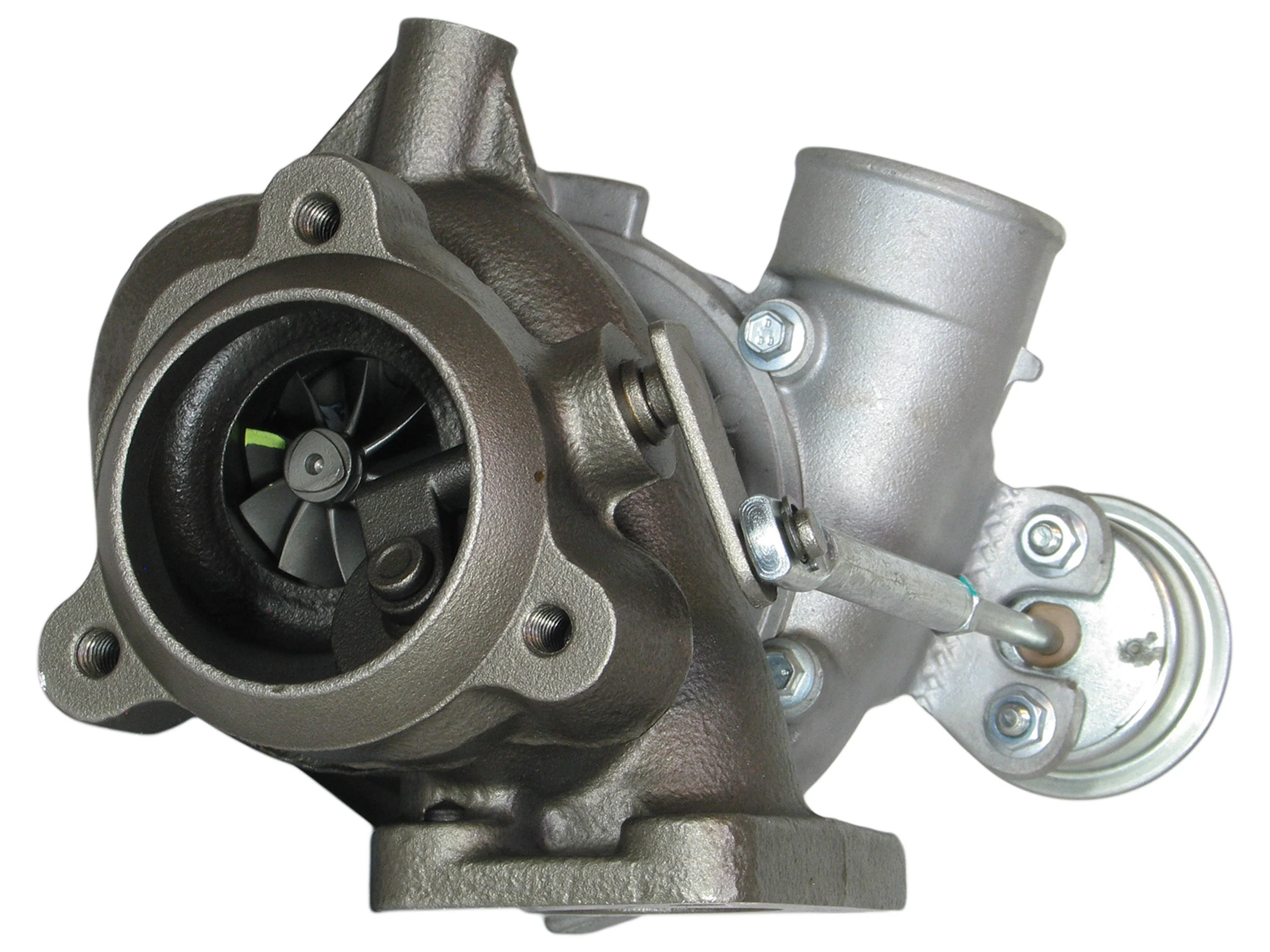

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 452204-5005
Interchangeable Number: 452204-0005, 452204-5005S, 452204-0001, 452204-5001, 452204-5001S, 452204-0003, 452204-5003, 452204-5003S, 452204-0004, 452204-5004, 452204-5004S, 452204-0007, 452204-5007, 452204-5007S
OEM Number: 4611349, 55560913, 5955703, 9172123, 9180290, 9198631
Turbo Model: GT1752S

Year: 1997-
Engine: 2.0LPT, 2.3LPT, B204E, B204L, B205E, B235E, B235R, B308E
Engine Manufacturer: Saab
Displacement: 2.0/2.3/3.0L, 1985/2290/2962 ccm, 4 Cylinders, 16 Valves
Emission Standard: Euro 2/Euro 3/Euro 4
Fuel: Gas
Power: 147/150/154/170/179/182/185/192/207/209/230 HP
Speed: 5500 RPM

Angle α (Compressor Housing): 110°
Angle β (Turbine Housing): 142°
Actuation: Pressure
Actuator: 432340-0068 (2061016150)
Back Plate: 701335-0001 (1300011007)
Bearing Housing: 434578-0012 (713782-0006, 434578-0014)(Water Cooled)(1900011193)
CHRA: 433352-0055 (433352-5055S)(1102015916, 1000010191)
Compressor Cover: 409589-0622 (436246-0004)
Compressor Wheel: 436133-0002 (436131-0012, 436131-0016, 436131-0022)(Ind. 32.61 mm, Exd. 44 mm, 6+6 Blades, Super Back)(1200020015)
Gasket (Oil Outlet): 210243 (Paper)
Gasket (Turbine Inlet): 210224 (Stainless Steel)
Gasket Kit: (2090505199)
Gasket Kit: 215088
Heat Shield: 723421-0001 (430871-0002, 445118-0001)(2030016026)
Repair Kit: 732252-0001 (5000010067B)
Turbine Housing A/R: 0.47
Turbine Housing: 413567-0061
Turbine Wheel: 434714-0034 (434714-0004, 434714-0009, 434714-0019, 434717-0034)(Ind. 44.19 mm, Exd. 37.49 mm, 9 Blades)(1100030114)
Turbo Technology: Wastegate
Wastegate Settings (Lift Shaft): 0.38 mm
Wastegate Settings (Pressure): 0.360-0.400 bar

Application:
1997- Saab 9-5 with 2.0L B205E Engine
1997-00 Saab 9-5 with 2.3L B235E Engine
1997-00 Saab 9-5 with 2.3L B235R Engine
1997-01 Saab 9-5 T16 with 2.3L B235E Engine
1997-10 Saab 9-5 T16 with 2.0L B205E Engine
1998-00 Saab 9-5 T16 with 2.0L B205E Engine
1998-01 Saab 9-5 T16 with 2.3L B235E Engine
1998-02 Saab 9-3 T16 with 2.0L B204L Engine
1998-03 Saab 9-3 T16 with 2.0L B204E Engine
1998-03 Saab 9-3 T16 with 2.0L B204L Engine
1998-03 Saab 9-3 with 2.0L B205E Engine
1998-03 Saab 9-5 with 3.0L B308E Engine
1998-10 Saab 9-5 T16 with 2.0L B205E Engine
1999-01 Saab 9-5 T16 with 2.3L B235R Engine
1999-01 Saab 9-5 with 2.3L B235E Engine
1999-01 Saab 9-5 with 2.3L B235R Engine
1999-02 Saab 9-3 T16 with 2.0L B204E Engine
1999-03 Saab 9-3 T16 with 2.0L B204E Engine
1999-10 Saab 9-5 T16 with 2.3L B235E Engine
2000- Saab 9-5 with 2.3L B235E Engine
2000- Saab 9-5 with 2.3L B235R Engine
2001- Saab 9-3 with 2.0L B205E Engine
2001- Saab 9-5 with 2.0L B205E Engine
2001- Saab 9-5 with 2.3L B235E Engine
2001-02 Saab 9-3 with 2.0L B205E Engine
2001-02 Saab 9-3 with 2.0L B235E Engine
2005-10 Saab 9-5 T BioPower with 2.0L B205E Engine
2006-10 Saab 9-5 T BioPower with 2.0L B205E Engine
2006-10 Saab 9-5 T BioPower with 2.3L B235E Engine
2007-10 Saab 9-5 T BioPower with 2.3L B235E Engine
2008-10 Saab 9-5 T16 with 2.3L B235E Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.

Saab

NEW GT1752S Turbocharger Saab 9-3 B204E B204L 9-5 B205E B235E Engine 452204-0001

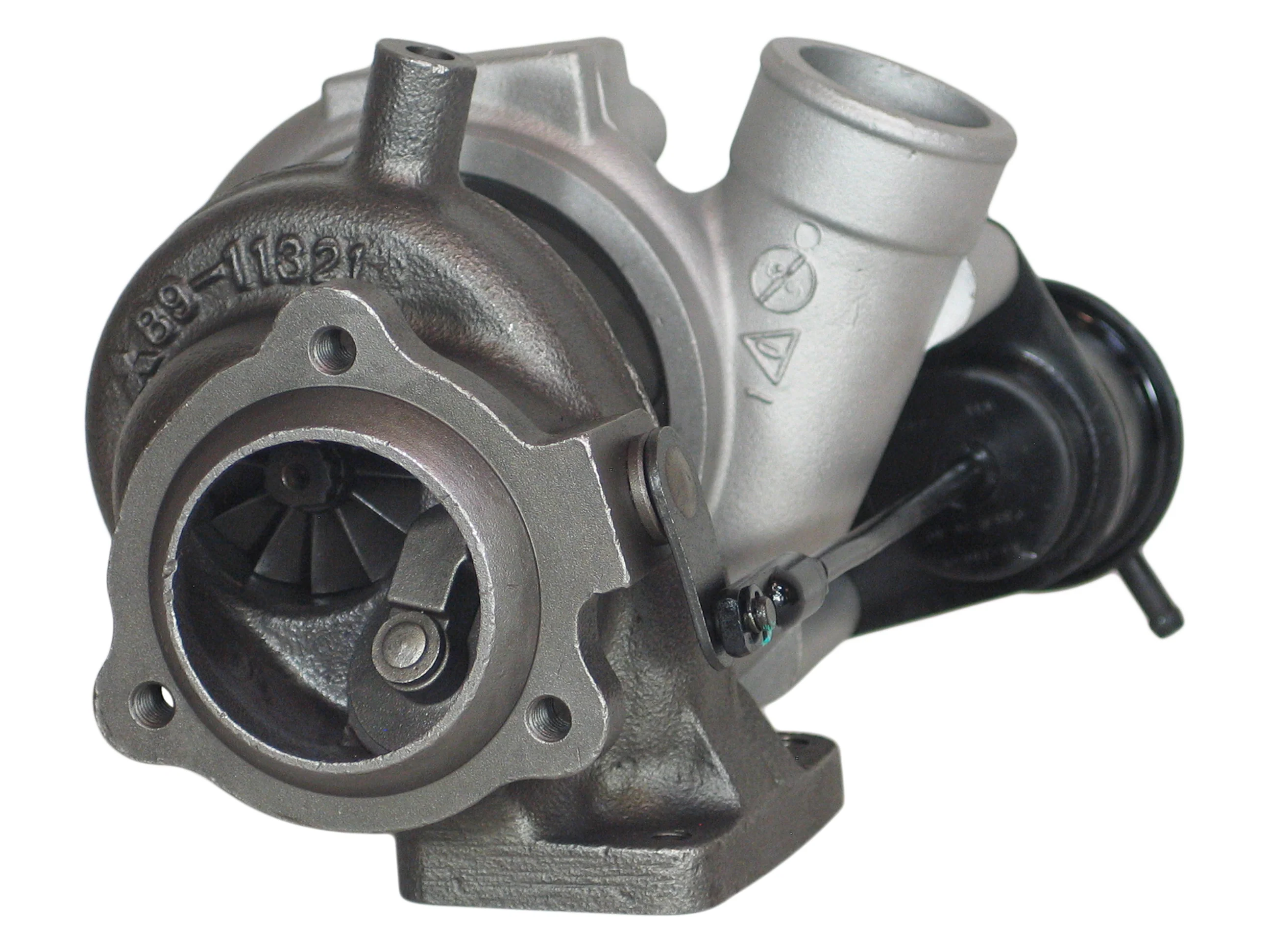

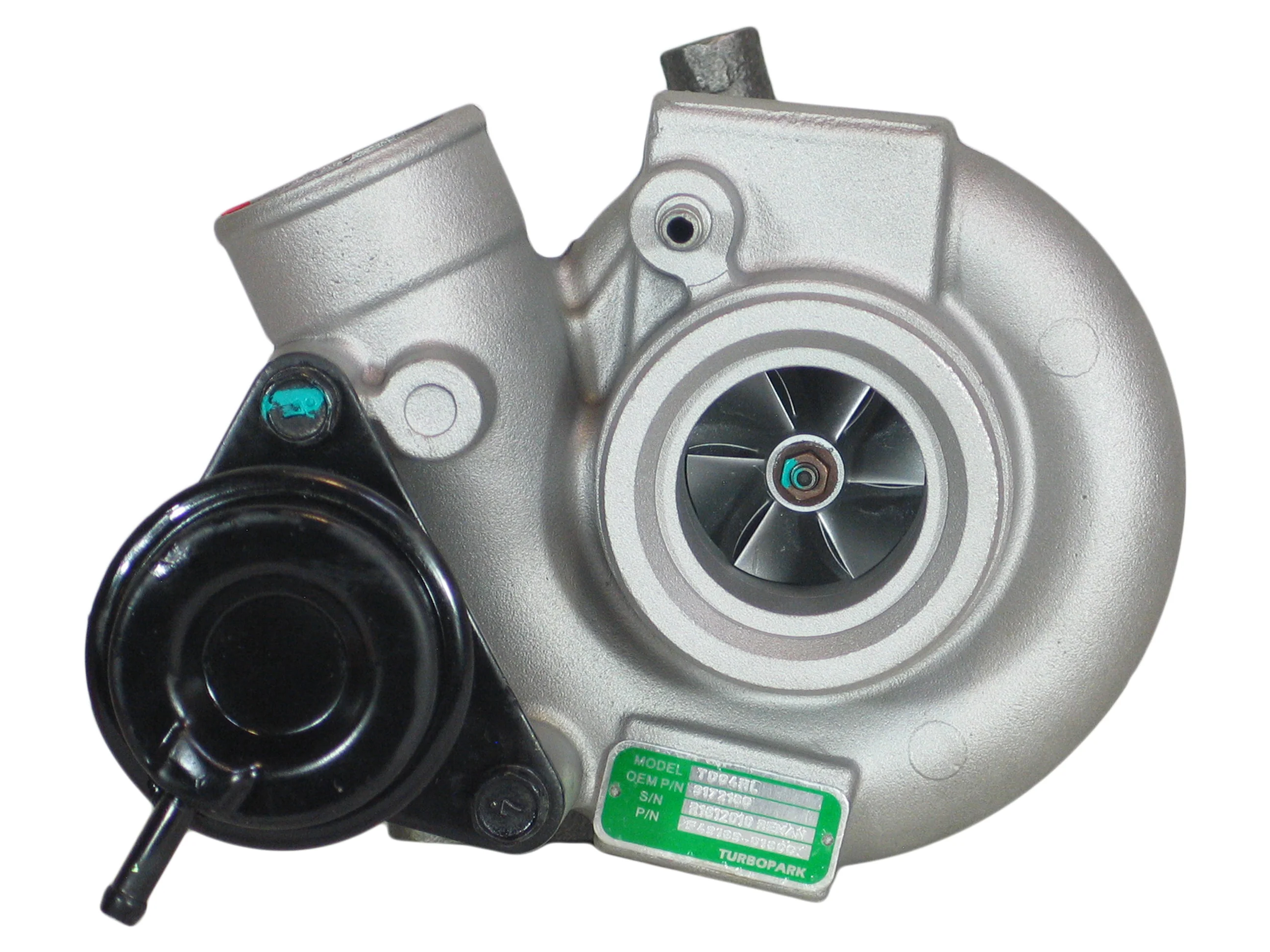

TD04HL Turbo Saab 9-3 9-5 Aero Viggen B253R 2.3L Gas Engine 49189-01800
